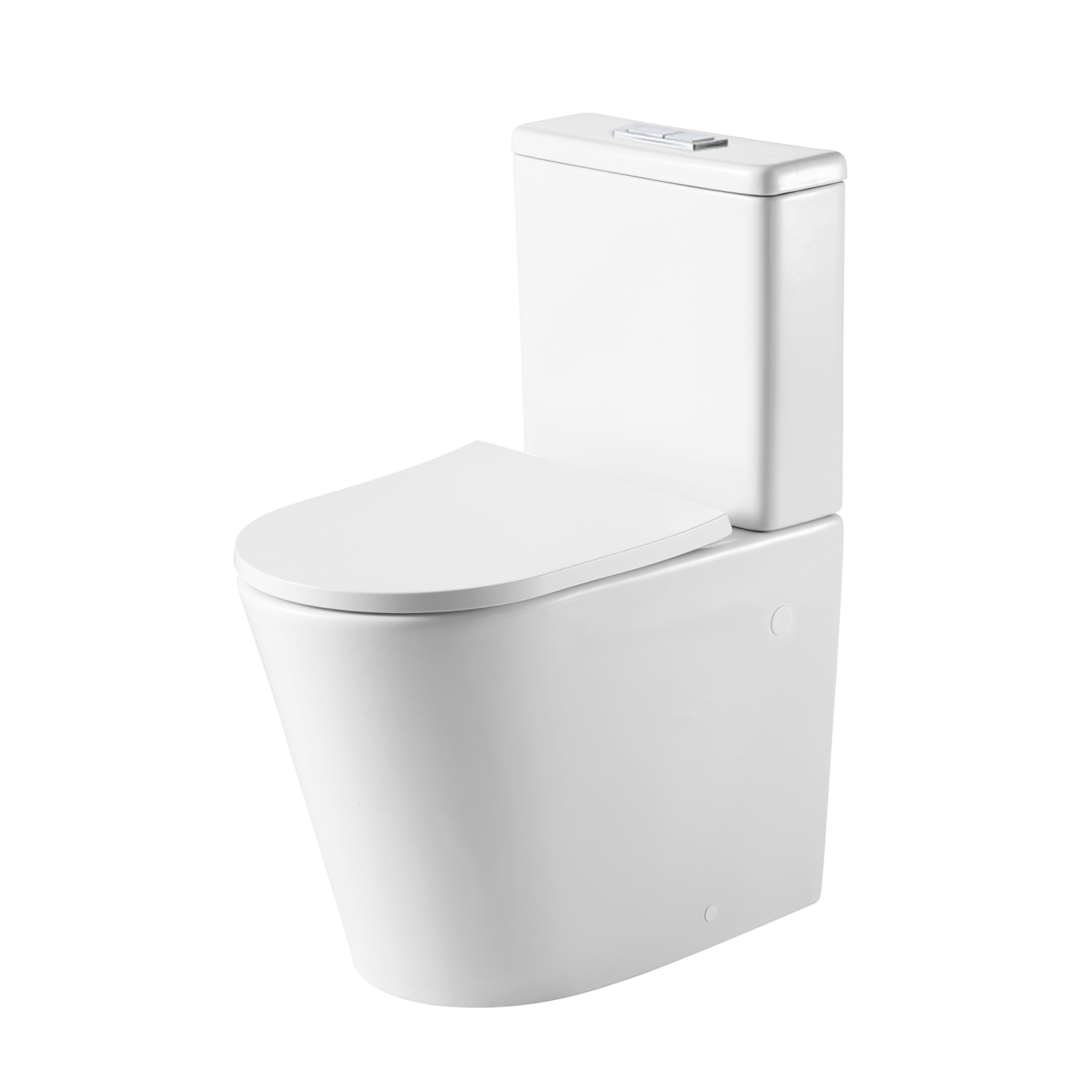

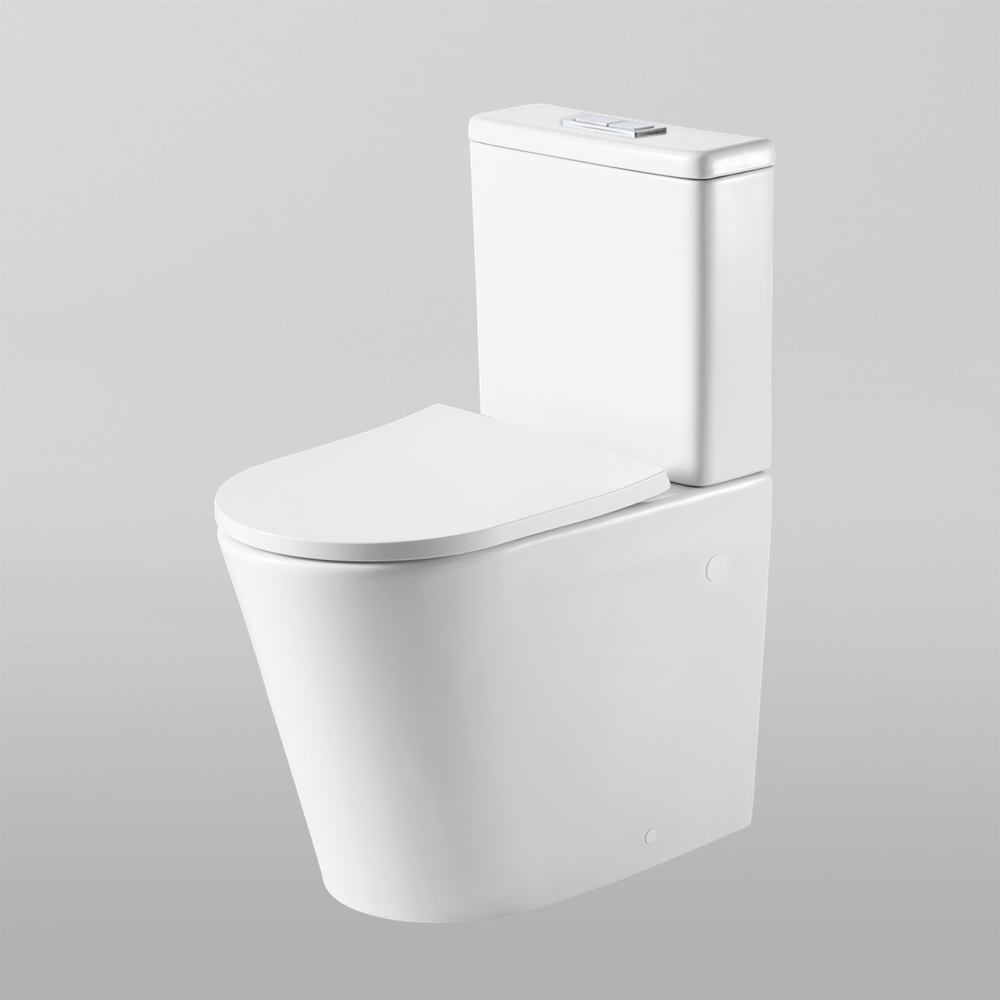

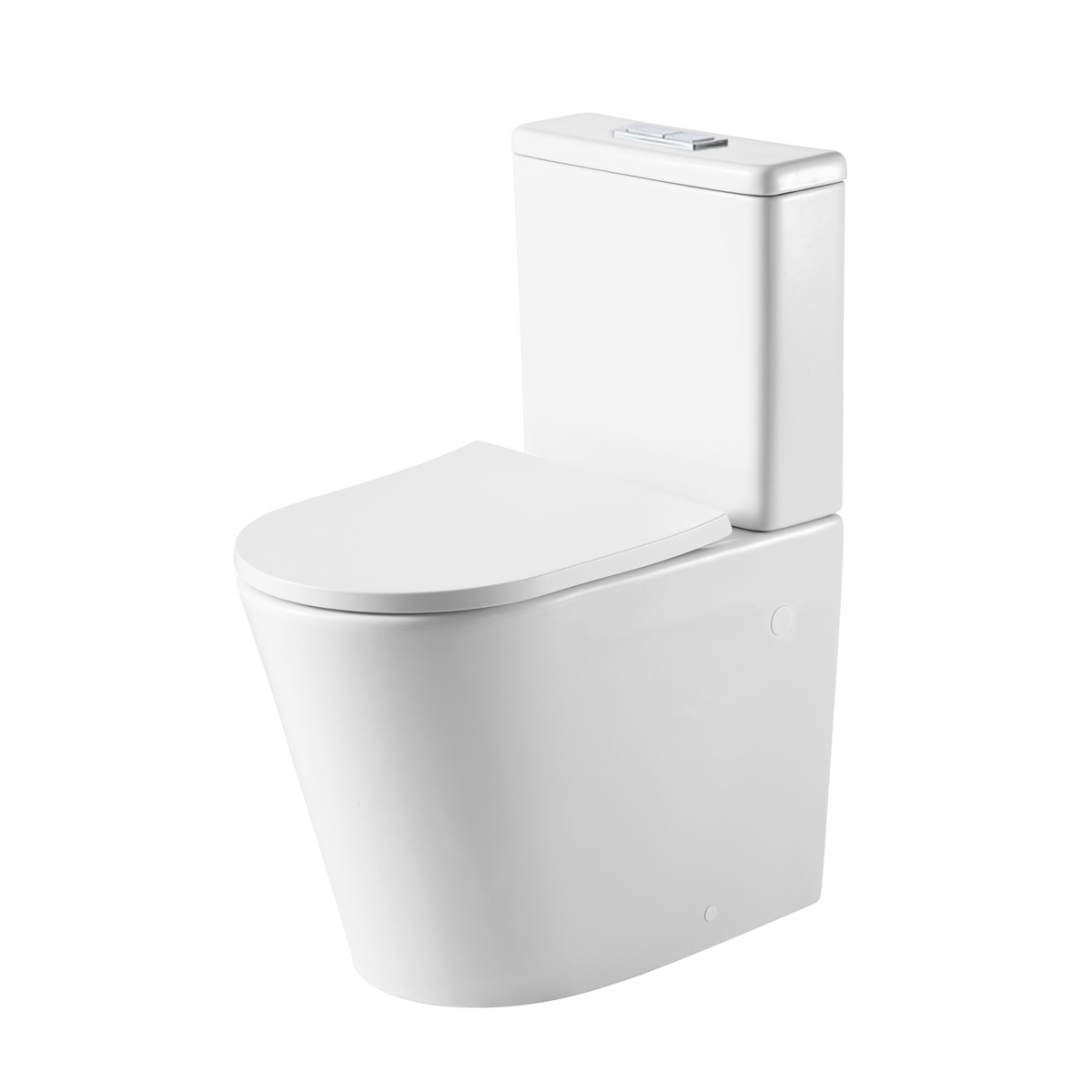

Vienna Short Projection Comfort Height Back To Wall Toilet Suite White

Space saving and comfort height toilet suite. This toilet protrudes a nominal distance of just 595 mm from the front edge of the pan to the wall behind the suite making it perfect for smaller spaces. The nominal height from the top of the pan (underside of seat) to the floor is 430 mm. Vienna Short Projection Comfort Height Suite Components Pan: VI600CHA-P, Cistern: VI600CHA-C, Seat Cover: VI600CHA-ST.

Product Feature

Wels rating: 4 Stars, 3.4 L average flush
Pan: Rimless
Trap(s): Universal (S or P Trap), S Trap, P Trap
Cistern: WDI dual flush valve (4.5L/3.1L)
Set outs: S-trap set out 75mm-155mm as standard. P-trap set out 180mm floor to centre of outlet. Optional S-trap set out 155mm - 205mm (SPB0201).
Inlet: Bottom or back inlet
Seat: Soft close quick release with metal hinges
Colours: White
Installation: The installation of the toilet suite shall be in accordance with the normal minimum drain line grade requirements in AS/NZS 3500.2.
Materials: Vitreous china pan and cistern, compression moulded polymer seat
Weight: 51 kg
Parts list: UF toilet seat, WDI double flushing valve, square button, standard pipe.
Warranty: 20 years vitreous china cistern and pan replacement of product; 5 years replacement seat; 2 years valves and fittings; 1 year seals and labour (refer to Service & Warranty page for details)
Maintenance and care instructions: Clean with a soft cloth and warm soapy water as necessary - rinse and dry after cleaning. Avoid using abrasive or acid-based cleaning products.
