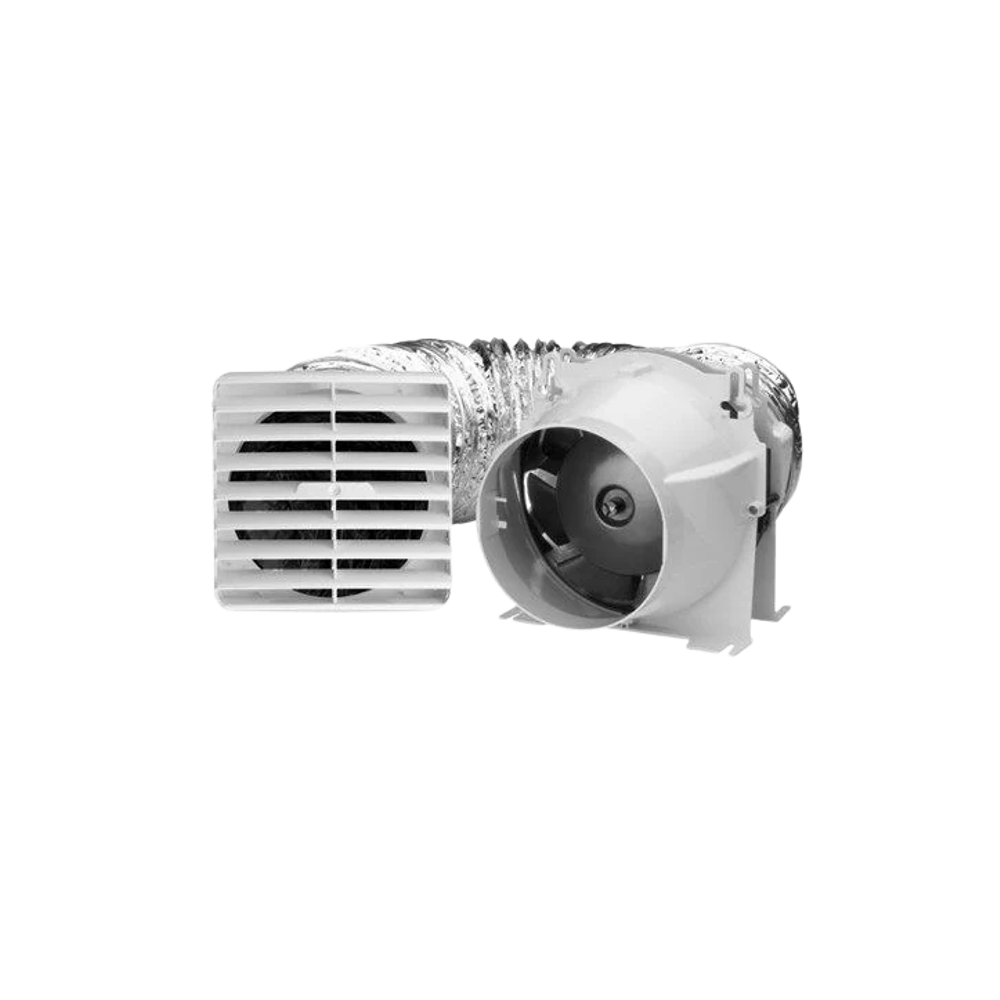

Ventflo Easy Duct Exhaust System

Fully ducted ventilation unit with 170mm blower. Engineered to seal when not in use - prevents back draughts. Ideal for eco-sensitive designs and 5-star energy rated homes. Flex and plug included for simple installation. Extraction rate of 55 litres per second.

Ventflo Easy Duct Exhaust System is compliant with G4 Building Codes and Healthy Home Standard for bathrooms and kitchens.

UPC: 9313416103809
Finish/Colours: White
Airflow Extraction (m3/h): 198
Ducted: Yes
Back Draught Flaps: Yes
Center LED Light (W): No
Clearance Required above Unit (mm): 230
Cutout Size (mm): 160 dia.
Exhaust Capacity (l/s): 55
Exhaust Capacity (m3/h): 198
Fan Size (mm): 170
Fascia Dimensions (mm) : 165W x 165D
Total Height of Unit (not including Fascia) (mm): 215
Inline Fan Ducted to Outside: Yes
Length of Ducting Supplied: 6m x 150mm dia
Made in Australia: Yes
Supplied with Switch Set: No
Supply (Volts): 240
Area Suitability in Room without Shower: 24.75
Area Suitability in Room with Shower: 9.9
Total Clearance Height Required (including above unit) (mm): 230
Watts (Fan in Brackets): 40 (40)
Weight of Unit (kg): 2.95
Watts (W): 40
